DripNet PC™ ASXR

The drip Line optimized for subsurface drip irrigation with active protection against root intrusion and clogging and a perfect cost-performance ratio

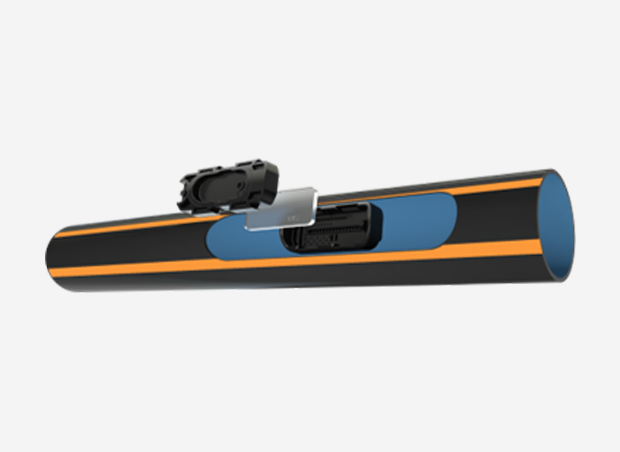

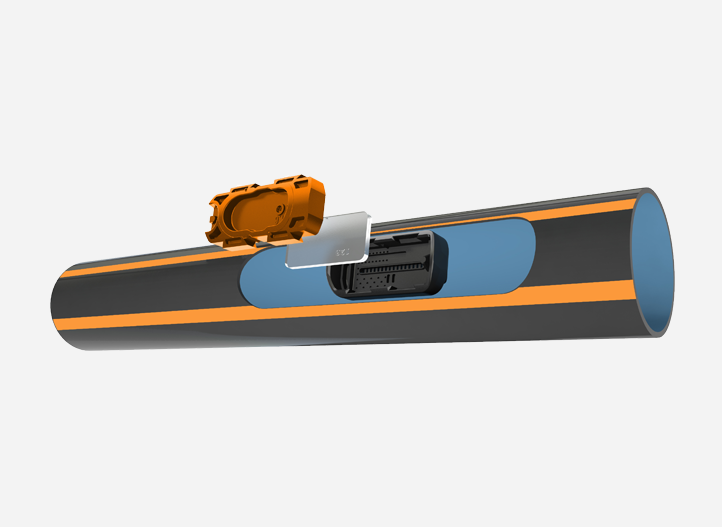

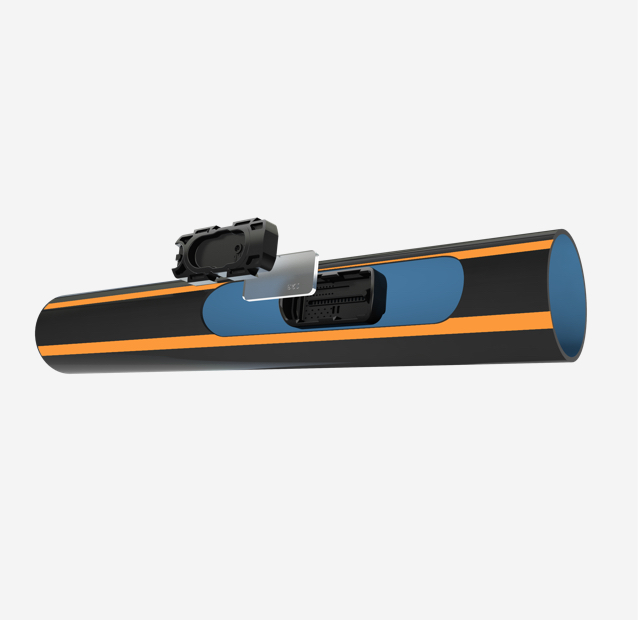

DripNet PC™ ASXR integral pressure compensated self-cleaning drippers combine Anti-Siphon technology with extra root intrusion resistance (ASXR) to deliver long-lasting uniform subsurface irrigation in any topography.

  • Embedded copper oxide for long-lasting protection against root intrusion
  • Anti-Siphon mechanism prevents dirt suction and reduces clogging risk during system draining

Expected Product Lifespan

  • 10 years and more


  • Hilly Topography
  • Flat Topography

Dripper Type

  • Integral

Pressure Compensation

  • PC

Dripperline Wall-Thickness

  • Medium wall
  • Thin wall

Dripper special features

  • AS XR (Xtra-Root protection)


  • SDI (subsurface drip irrigation)

Crop type

  • Orchards
  • Field crops

Why DripNet PC™ ASXR?

  • SUPERB ROI: Achieve excellent subsurface drip irrigation performance for your budget - without compromising a drop on reliability or crop uniformity.
  • DOUBLE-ACTION ROOT PROTECTION: Physical root barrier protects against root intrusion into the dripper while innovative non-migrating copper oxide resin mixed into the dripper cover inhibits root growth within the dripper labyrinth throughout its lifespan.
  • SYSTEM-DRAINING PROTECTION: Anti-Siphon mechanism prevents suction of sand, dirt and contaminants into the drip Line during system draining - eliminating the risk of clogging, or partial clogging.
  • UNIFORM FLOW IN ANY TOPOGRAPHY: Wide effective filtration area and short water passage, plus self-cleaning technology, assures 100% uniformity of water and nutrient distribution in long laterals and sloping or uneven terrain.
  • NEVER CLOGS: Self-flushing system continuously flushes out debris to ensure optimal dripper performance and increased filtration efficiency even with harsh water.
  • PERFECT FIT FOR YOUR NEEDS: 7 different flow rates, (0.4 up to 3.8 L/H) and wide range of pipe diameters can address any condition or application.



  • Variety of flow rates: 7 different flow rates (0.4, 0.6, 1.0, 1.6, 2.0, 3.0, 3.8 L/H) can address any condition or application
  • Wide range of pipe diameters: 12.0 mm - 23.0 mm
  • Wall thickness: 0.9 mm, 1.0 mm, 1.2 mm
  • Pressure compensating range: 0.4 - 5.0 bar
  • Pressure-compensating range: 0.25, 0.40, 0.60 - 2.5, 3.0, 3.5 bar (according to flow rate model)
  • Superb UV and chemical resistance

Growers stories

Meet the people pioneering precision irrigation

Other DripNet PC™ models

DripNet PC™

DripNet PC™

Multi-seasonal (4-9 seasons) on-surface row crops irrigation; deciduous plantation and tree irrigation in flat and complex topographies
