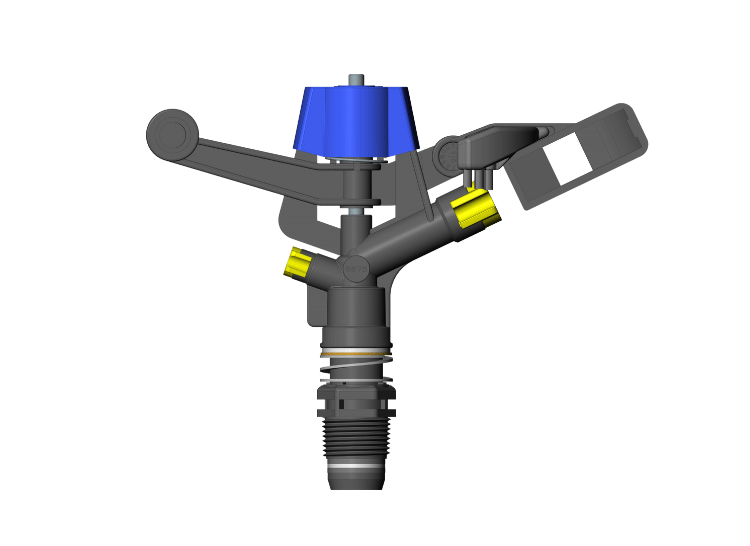

D-Net™ 9575

Ultra-durable impact sprinkler for highly uniform field crops and vegetables irrigation

D-Net™ 9575 3/4" impact sprinklers deliver optimal water-distribution uniformity for your field crops and vegetables. Featuring an innovative 3D diffusion arm, the D-Net™ 9575 is the perfect choice for precision irrigation of fields that require spacing up to 15 x 18 meters.

Maximum water distribution uniformity and maximum water use efficiency
Delivers long-term performance in any climate, with any nutrient or chemical applications

Application

Irrigation

Pressure

High
Medium pressure

Coverage type

Full Coverage: Large spacing installation
Full Coverage: Medium, spacing installation

Crop type

Field crops

Trajectory angle

Normal

Why D-Net™ 9575?

High and uniform crop yields: Innovative 3-D diffusion arm ensures the highest level of water distribution uniformity in the market, respective to its flow rate and installation spacing.
Saves water: Thanks to D-Net’s outstanding water distribution uniformity, even with wide spacing of up to 15mx18m.
Long-lasting performance: Tough UV-protected materials withstand all climate conditions, applied nutrients and chemicals ensuring trouble-free operation over the product’s life.
Versatile installation: Installs on solid sets or on removable field stands.
Cost-saving maintenance: Special nozzle-key is designed to make cleaning debris from the nozzle simple and quick, even under pressure.

Specifications

Variety of nominal flow rates: 1200, 1400, 1600, 1800, 2000 l/h.
Nominal flow rates at 3.0 bar pressure
Recommended working pressure: 2.0 to 4.0 bar (at the sprinkler head).
Water trajectory angle: 24 degrees
Inlet connection: 3/4” male thread
Color-coded nozzles for easy identification

Downloads

Product sheets

Netafim D-Net™ 9575 Technical Product Sheet (PDF)

Other D-NET™ models

D-NET™ 6550

Designed for under canopy irrigation with a low water trajectory angle, this sprinkler ensures a very high level of distribution uniformity thanks to its innovative 3D arm.

D-NET™ 8550

Thanks to its innovative 3D arm, this 1/2" impact sprinkler offers maximum water-distribution uniformity.

D-NET™ 8550 F.R.

D-Net™ 8550 F.R. 1/2" impact sprinklers, with 3D diffusion arm and unique flow regulated nozzles guarantee excellent crop uniformity and consistency for field crops and vegetables irrigation throughout the field, with sprinkler spacing up to 12x14 meters.

D-Net™ 9575 AA

3/4" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"

D-Net™ 8550 AA

1/2" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"

D-Net™ 0950

With its low water trajectory angle, D-Net™ 0950 is ideally suited for precise under canopy irrigation of banana or oil palm plantations up to 10 x 10 meters or field crops with windy conditions."
