Pulsar™ + StripNet™X



Pulsar™ + StripNet™ X, a unique and patented micro-sprinkler, designed to achieve a wide-band wetted stripe of up to 1.2 meter for high density crops. It protects the tree from extreme weather events and diseases thanks to its overhead water technology.

The combination of Pulsar™ + StripNet™ X allows to protect the density crops against spring frosts and heat waves in high efficiency.

The process is achieved by distributing water at a pulsed frequency localized on the plants, using 50% less water than traditional systems.

  • It enables a higher and focused precipitation rate specific on the crop and allows covering a larger area.
  • Resulting in a significant improvement in the production and quality of the yield.

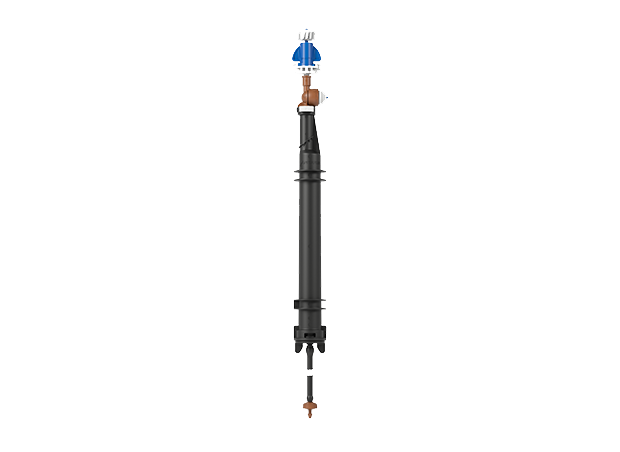

The Pulsar™ + StripNet™ X consists of a pressure compensated dripper, a micro tube, a Pulsar™ chamber with an air bag inside, an anti-drain valve and StripNet™ X micro-sprinkler head.

Are You Ready for the Extreme?

Discover the only multi-disciplinary alternative solution to protect your crops from extreme weather events.

Why Pulsar™ + StripNet™ X?

  • Super-focus and exact protection: On the tree-top leading to precise water or chemical spraying.
  • Maximize the water use efficiency: Specially designed to use less than 50%-70% of the water required by full-coverage sprinkler systems.                                      Pulsar™+ StripNet™ X allows efficient coverage of larger areas with a given amount of water.
  • Effective frost protection: Continuous and robust frost protection over large areas for many hours - even with limited water.
  • Great coverage with low flow: The unique pulsation mechanism allows each emitter to cover a large range while maintaining low flow, allowing reduction of emitter units per hectare, infrastructure cost, and water consumption.
  • Easy installation & maintenance: Pulsar™ + StripNet™ X has a unique mounting bracket on the vineyard posts or adapter to mount between wires.
  • Long-lasting performance: Made of plastic materials resistant to standard nutrients used in agricultural and weather conditions.

Application

bullet check.png  Frost protection

bullet check.png  Heatwave protection

Pressure

bullet check.png  Medium pressure




Coverage type

bullet check.png  Wide band wetted stripe

Crop type

bullet check.png  Intensive crops

Specifications

  • Stripe Coverage: 1.5m width
  • Installation on field: 5m between heads
  • Average precipitation rate: Within the 1.0m width ~ 3.0mm/h
  • Technology: Unique patented pulsation and stripe cover technology
