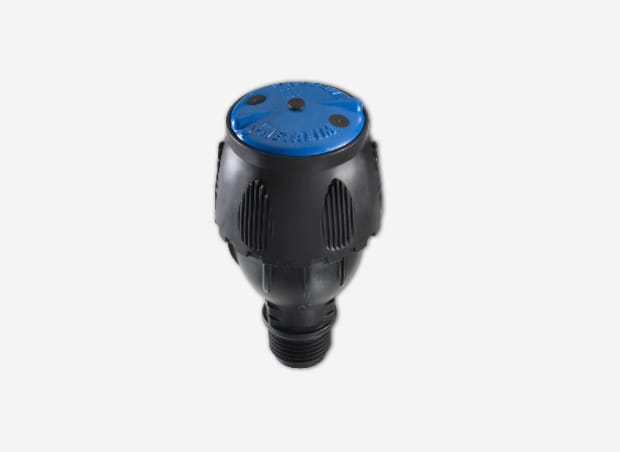

MegaNet™ 24D

High-performance encapsulated and protected impact sprinkler for field crops and vegetables irrigation

MegaNet™ 24D rotating impact sprinklers, with innovative “fortress” design, deliver very high water distribution uniformity, while preventing performance issues caused by insects, poor water quality and field machine damage. Suits a wide range of applications including crop germination, frost protection and roof dust cleaning.

  • 24-degree water trajectory for vegetables and field crops irrigation with spacing up to 10 x 12 meters
  • Prevents performance issues caused by insects, poor water quality or field machine damage

Application

  • Irrigation
  • Frost mitigation
  • Orchards cooling
  • Orchards humidification
  • Leaves Dust cleaning

Pressure

  • Medium pressure

Coverage type

  • Full Coverage: Medium, spacing installation
  • Full Coverage: Small spacing installation

Crop type

  • Orchards
  • Field crops

Trajectory angle

  • Normal

Why MegaNet™ 24D?

  • More uniform yields: MegaNet’s symmetric structure creates two equal water jets that optimize the sprinkler’s balance to deliver even better water distribution uniformity.
  • Long-lasting performance: Innovative encapsulated design with unique pop-up mechanism, that opens only during operation, extends the life of the nozzle and other moving parts by preventing insects and dirt particles from obstructing the sprinkler.
  • Improves germination: From startup to shut off, MegaNet™ does not groove the soil, preventing seed exposure from the soil. A gentle water jet that distributes relatively small drops near the ground also increases seed germination rates.
  • Anti-clogging: Integral filter ensures clean water inside the nozzle; this filter can be easily cleaned if needed.
  • Weather and chemical resistance: Manufactured with UV-resistant materials that can withstand chemicals, fertilizers, and sun exposure.
  • Versatile installation: Installs on solid sets or on removable field stands.

Specifications

  • 7 different nominal flow rates: 200, 250, 350, 450, 550, 650, 750 l/h. Nominal flow rates at 2.3 bar pressure
  • Recommended working pressure: 2.0 to 3.0 bar (at the sprinkler head).
  • Recommended filtration: 400 micron / 40 mesh
  • Water trajectory angle: 24 degrees
  • Inlet connection: 1/2" male thread, 20mm ISO inlet (for gluing to PVC riser)
  • Color-coded locking pins and caps for easy identification
Specifications

Other MegaNet™ models

MegaNet™ 15D

MegaNet™ 15D

MegaNet™ 15D is an impact sprinkler with low water trajectory delivers maximum water distribution uniformity for under-tree and field crops and vegetables irrigation with spacing up to 10 x 12 meters.
