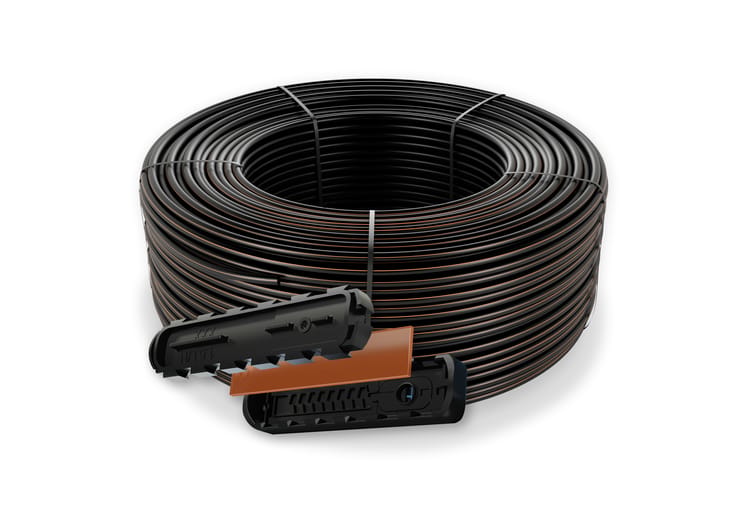

UniRam™ AS

Integral pressure-compensated drip line, ideal for deciduous plantations, tree irrigation and permanent (10 or more seasons) subsurface row crops applications. The ulitimate solution for subsurface drip irrigation.

The UniRam™ AS integral PC drip line delivers ultra-reliable uniformity in subsurface drip irrigation (SDI), even in complex topographies thanks to its pressure compensating mechanism and Anti-Siphon mechanism that prevents dirt suction.

The Anti-Siphon mechanism blocks external contaminants from being drawn into the dripper, making it a great solution for buried drip lines (SDI).

Expected Product Lifespan

10 years and more

Topography

Hilly Topography
Flat Topography

Dripper Type

Integral

Pressure Compensation

dripperline wall-thickness

Heavy wall

Dripper special features

Anti-Siphon (AS)

Surface

SDI (subsurface drip irrigation)

Crop type

Protected crops
Orchards
Field crops

Why UniRam™ AS?

Anti-plugging protection: Anti-Siphon mechanism prevents suction of dirt and contaminants into the dripline during system draining - eliminating the risk of clogging, or partial clogging.
Uniform flow rates: The industry’s biggest filtration area and water passage, plus self-cleaning technology assures 100% uniformity of water and nutrient distribution in long laterals and in any topography.
Never clogs: Self-flushing system continuously flushes out debris to ensure optimal dripper performance year after year.
Root protection: A physical barrier stops root intrusion without the need for chemicals.
Long-lasting: Ultra-durable, UV-stable lines are built to resist damage from heavy machinery, soil insects, sun exposure and re-coiling.

Specifications

Variety of flow rates: 5 different flow rates (0.7, 1.0, 1.6, 2.3, 3.5 L/H) can address any condition or application
Wide range of pipe diameters: 16.0 to 23.0 mm
Wall thickness: 1.0 mm - 1.2 mm
Pressure compensating range: 0.4-5.0 bar.
Superb UV and chemical resistance

Downloads

Product sheets

UniRam AS product sheet (PDF)

Technical information

UniRam AS technical product sheet (PDF)

Other Uniram™ models

Uniram™ CNL

Greenhouses, deciduous plantations and tree irrigation; permanent (10 or more seasons) with Anti Drain mechanism.

Uniram™ HCNL

Greenhouses and precise irrigation applications; permanent (10 or more seasons) subsurface row crops; deciduous plantations and tree irrigation with Anti Drain mechanism in complex topographies.
