What is a disc filter? How does a disc filter work?

Disc filters comprise a series of grooved plastic discs stacked together. Water passes through the pores that are created by the grooves while debris and particles that are larger than the groove size are trapped along the grooves. The size of the grooves gives a filtration grade from 25 – 400 microns.Disc filters are an excellent solution for filtering surface water systems containing a high load of organic materials, algae, silt and clay.

How does a disc filter backflush work?

Activated by a predefined command (differential pressure or time), alternate units of the disc filter system go into backflush mode. The inlet valve is shut as the drain is automatically opened. During the backflush process, the compression spring is released and the pressure difference is eliminated. The spine piston rises upreleasing the pressure on the discs. Tangential jets of clean water are pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.

AlphaDisc™
Disc Filter

Lean & Mean Filtration Machine

AlphaDisc™ gives you ultimate irrigation system protection thanks to a combination of precise depth filtration, high dirt-holding capacity, and a unique easy-to-scale modular design that adapts with your changing flow rate or water quality needs. AlphaDisc™ also features a smart controller providing performance data at your fingertips.

AlphaDisc™ prevents clogging and partial clogging to ensure system longevity and uniformly irrigated crops, so you can enjoy better ROI, cost-saving, and peace of mind.

The Lean & Mean Filtration Machine

Make sure you’re making the right decision:

High efficiency, precise depth filtration. Unique and improved disc design with precise filtration grade through all depths of the disc for better clogging protection.
High dirt-holding capacity. High filtration volume and area, coupled with the lowest head loss in the industry, ensures higher particle capture, fewer backflush cycles, and less downstream disruption.
Hyper modular. Unique modular design offers easy scalability as your needs evolve.
Low backflush flow rate and low head loss. Results in a significantly more cost-effective irrigation system.
AlphaDisc™ smart controller. Innovative controller with IP65 rating provides “always-on” access to filtration data.
Vertical installation. Smaller footprint for a well-designed, cost-effective irrigation room.
Multiple configurations. Inline, online, and angle configuration (single unit) – that can be easily adapted to any system configuration.
Durable and long-lasting product. Made from anti-corrosive materials.

FilterConfig

In 3 easy steps choose the right filter to optimize your application

Let's Go

Frequently asked questions

Disc filters comprise a series of grooved plastic discs stacked together. Water passes through the pores that are created by the grooves while debris and particles that are larger than the groove size are trapped along the grooves. The size of the grooves gives a filtration grade from 25 – 400 microns.

Disc filters are an excellent solution for filtering surface water systems containing a high load of organic materials, algae, silt and clay.
Activated by a predefined command (differential pressure or time), alternate units of the disc filter system go into backflush mode. The inlet valve is shut as the drain is automatically opened. During the backflush process, the compression spring is released and the pressure difference is eliminated. The spine piston rises up, releasing the pressure on the discs. Tangential jets of clean water are pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.

Explore our line of AlphaDisc™ disc filters:

AlphaDisc™ Single XL 3’’/4’’

Flow rate:

Up to: 90 m³/h
Up to: 396 GPM

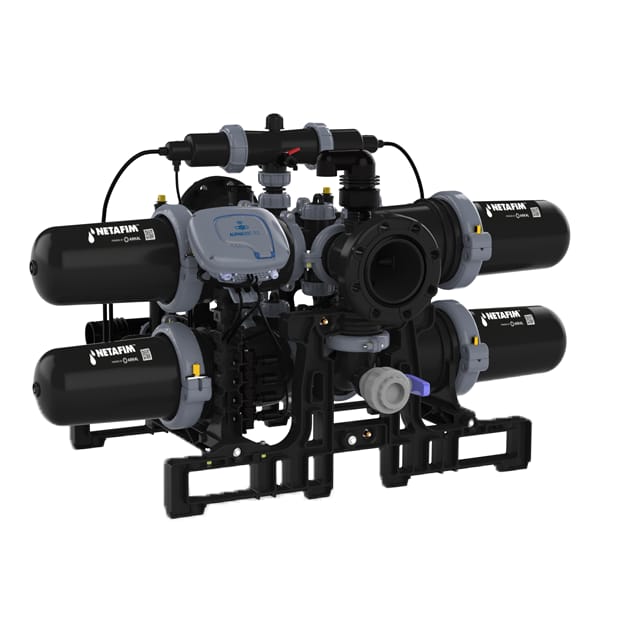

AlphaDisc™ Dual XL 6’’

Flow rate:

Up to: 180 m³/h
Up to: 792 GPM

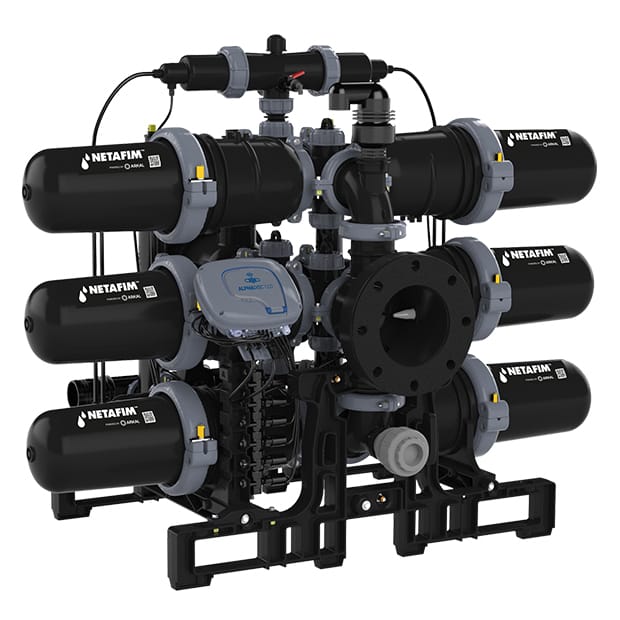

AlphaDisc™ Trio XL 8’’

Flow rate:

Up to: 270 m³/h
Up to: 1,188 GPM

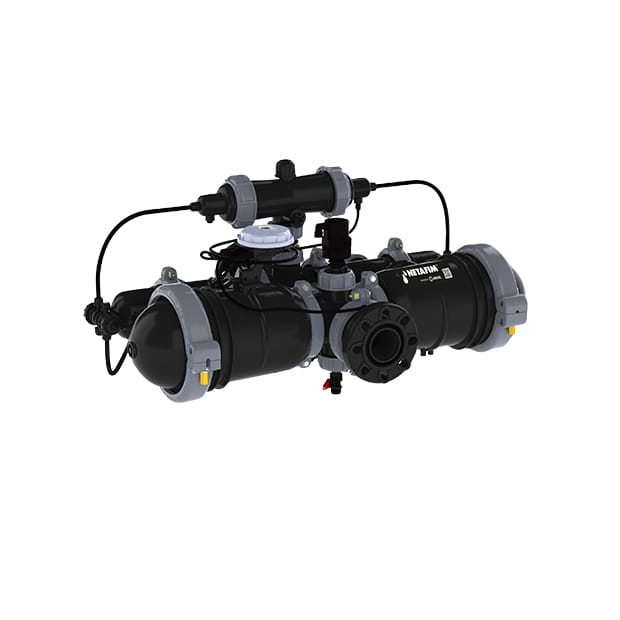

AlphaDisc™ Single 3’’

Flow rate:

Up to: 40 m³/h
Up to: 176 GPM

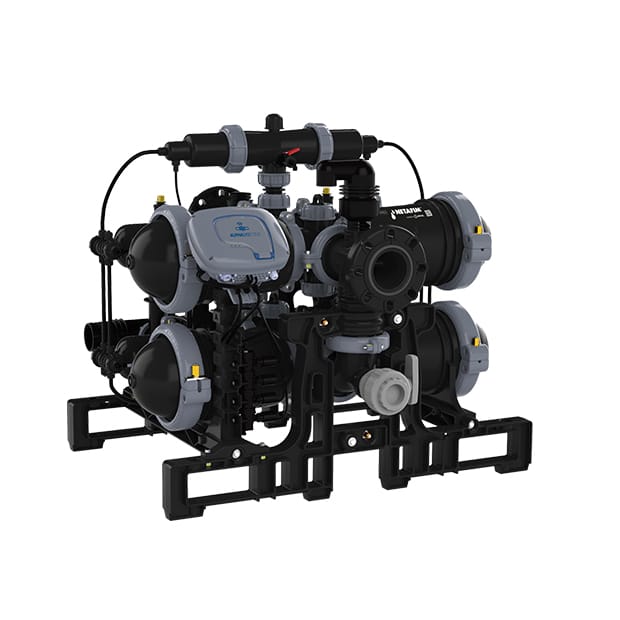

AlphaDisc™ Dual 4’’

Flow rate:

Up to: 80 m³/h
Up to: 3,52 GPM

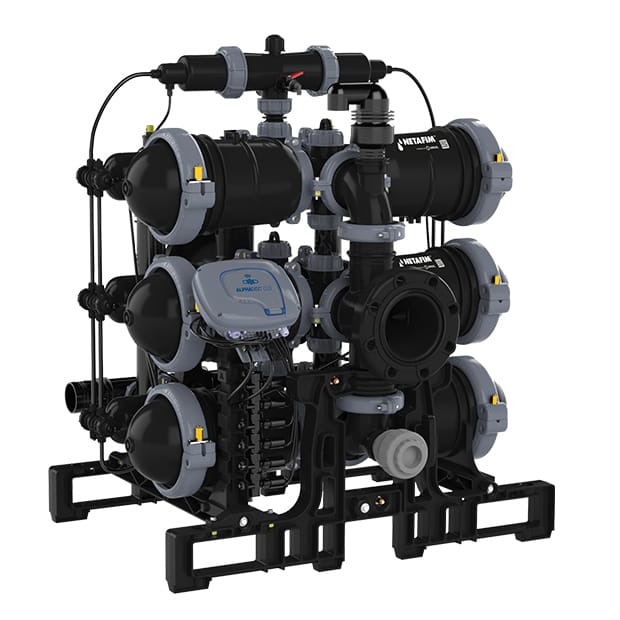

AlphaDisc™ Trio 6’’

Flow rate:

Up to: 120 m³/h
Up to: 528 GPM

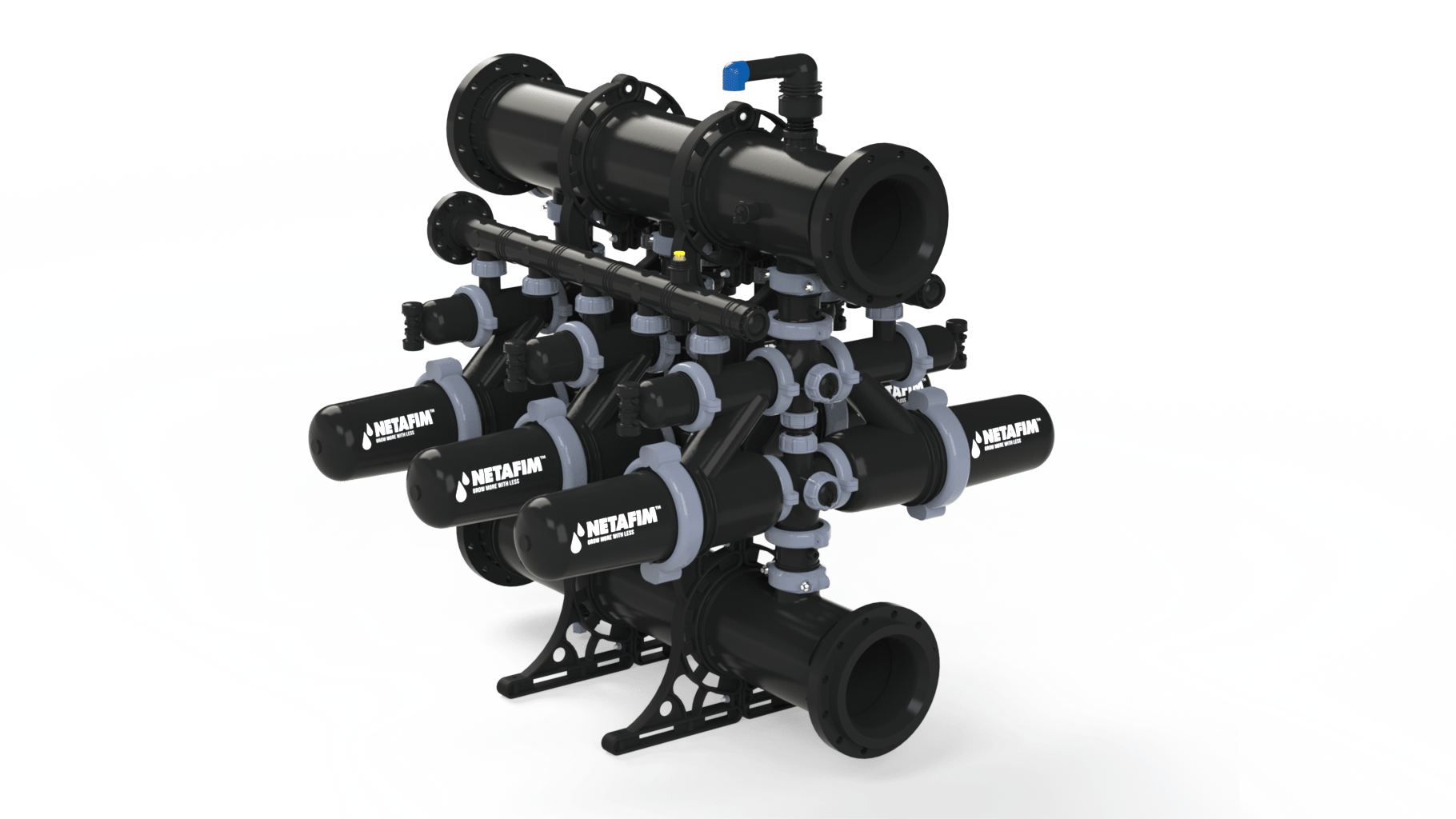

AlphaDisc™ in Apollo style 3 units

Flow rate:

Up to: 270 m3/h
Up to: 792GPM

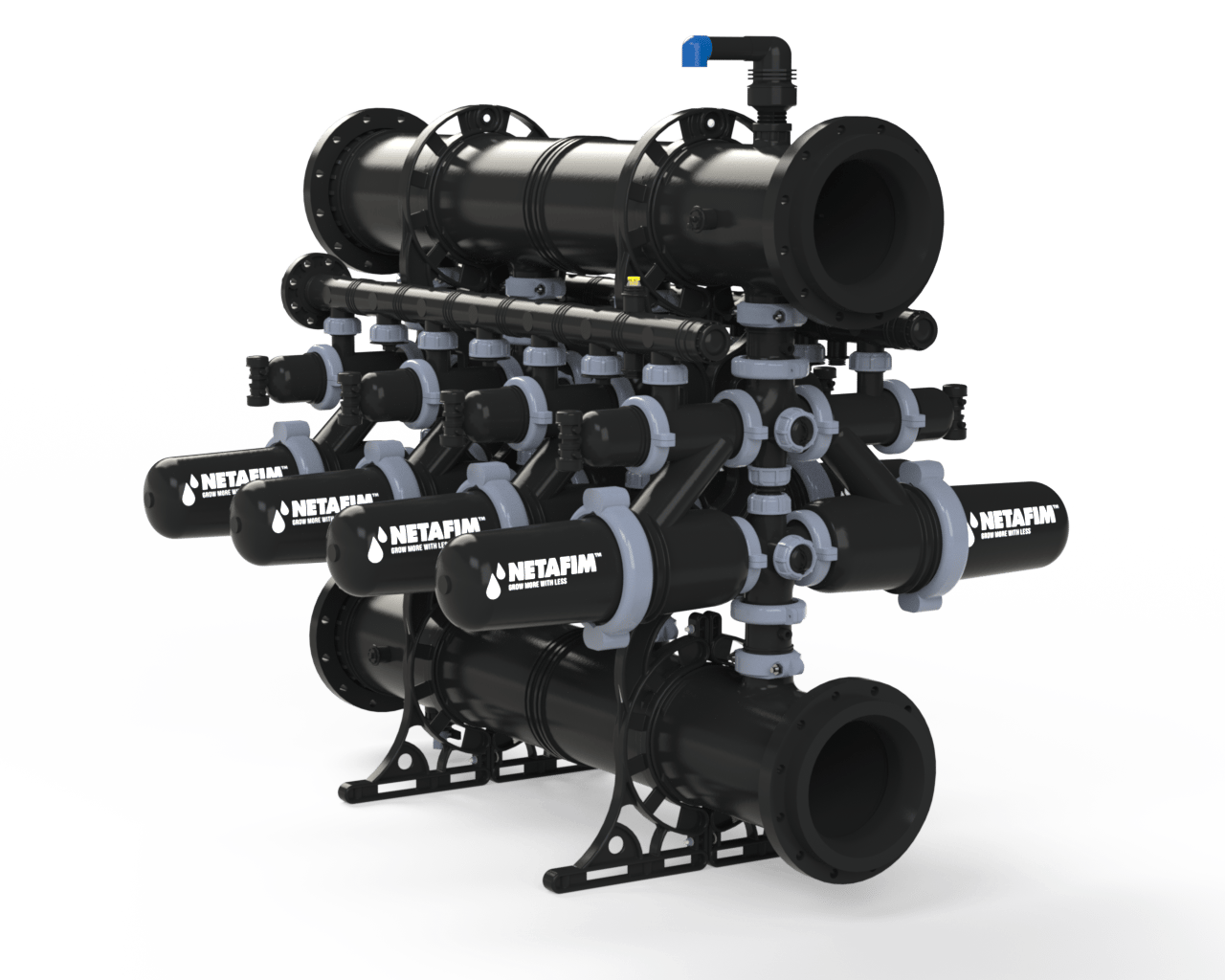

AlphaDisc™ in Apollo style 4 units

Flow rate:

Up to: 360 m3/h
Up to: 1056GPM

DOWNLOAD PRODUCT INFO DOWNLOAD PRODUCT MANUAL

AlphaDisc™ Filter Tutorials

Ensure optimal irrigation protection with our concise AlphaDisc™ Operation & Maintenance Tutorials

VIEW HERE
