Technical specifications
- Operating Pressure Range - up to 1 0bars (PN10)
- High strength polypropylene
- 2" BSP or NPT male threaded
- Manual, hand operated
- Recommended Flow - up to 50m3/h
- High quality nitrile seal

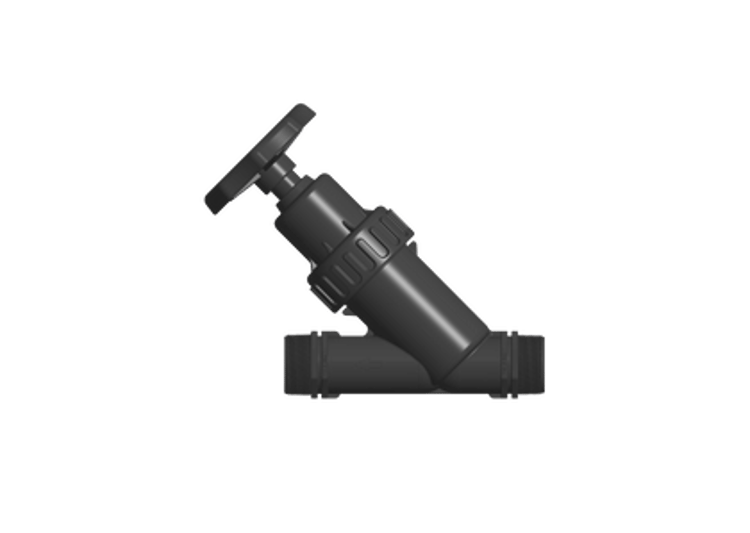

Angle Seat Valves
Superior flow with our solidly designed valve. Made from engineering plastic for strength, it's easy to open and clean even when installed underground.
When to choose Angle Seat Valves:
If you are looking for a valve with outstanding flow rate, no vibration and little trubulence.
Perfect flow rate: The flow is minimally impeded in the open position, resulting in an excellent flow rate and a low-pressure loss
Built to last: Solid design
Engineering plastic raw material used for strength and durability
Easy Maintenance: Easy to open and clean when used in underground valve box
Leakage free: Within operating pressure range, when valve completely shut off Direction of flow mentioned
Looking to learn more about Angle Seat Valves performance, dimensions and head loss?
Need help finding the best solution for your farm?
Get in touch, and we’ll be happy to talk about what your crop needs.
