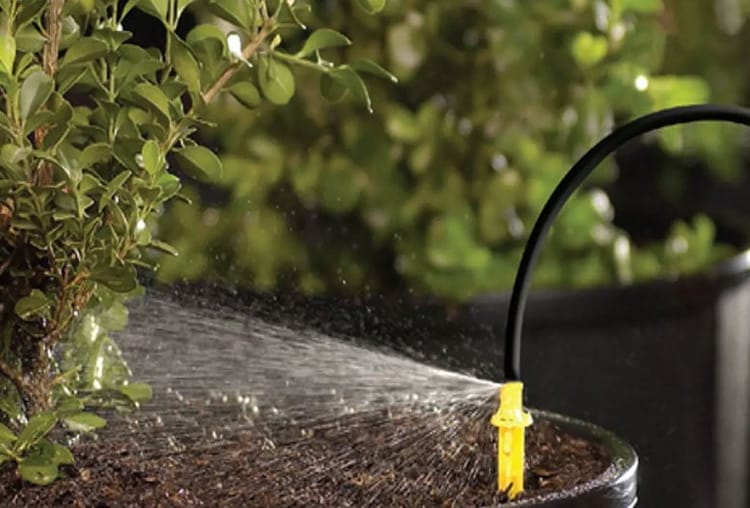

Non - PC Spray Stake

Netafim Spray Stake patterns are tailored to the pot shape, delivering a precise supply of water and fertilizer directly to the plant. This pattern ensures uniform wetting of the soil surface, enhancing water retention in the soil mix and promoting consistent distribution of liquid or timed-release fertilizers. As a result, excess spraying and water runoff are eliminated, leading to water, energy, and fertilizer cost savings.

Why Non - PC Spray Stake?

  • Uniform water and fertilizers distribution: Designed to achieve efficient wetting pattern of the of the soil mix, the Spray Stake has spray direction indicator for faster and accurate installations
  • Simple, secure shut-off: Engineered with special side-blocked option to allow the user to connect the microtube to the side-blocked option, in order to close-off the Spray Stake flow
  • Multiple options: The Spray Stake provides a variety of flow rates

Specifications

  • Flow rates: 12, 17, 22l/h
  • Maximum operation pressure range: 3.0 bar
  • Stake color coded for easy identification of the flow rate
  • Made of UV-protected materials, durable to all climate conditions and nutrients injected in agricultural applications.
  • Container size recommendations:
    • 12l/h Yellow Spray Stake 20 liter container
    • 20l/h Green Spray Stake 40 liter container
    • 22l/h Black Spray Stake 120 liter container
  • Assemble with 3x5 PE microtube
  • Recommended filtration: 130 micron / 120 mesh



*Note: Filtration method shall be selected based on the type and concentration of the dirt particles contained in the water. Wherever sand exceeding 2ppm exists in the water, a Hydrocyclone shall be installed before the main filter. Wherever sand/ silt/ clay solids exceed 100ppm, pre-treatment shall be applied according to Netafim™ instructions
